Wouxun KG-UV920P-A Dual Band Base/Mobile Two Way Radio

100 1 100 0
DUAL BAND!! DUAL SPEAKER!! DUAL OUTPUT!! CROSS-BAND REPEATER!!

Quick Overview

The Wouxun KG-UV920P-A is a Dual Band UHF/VHF base/mobile two way radio loaded with powerful features at an affordable price. With 40 watts UHF and 50 watts VHF, the KG-UV920P-A provides the RF carrier power of a high end portable handheld without the high end cost. The KG-UV920P-A features twin band simultaneous reception, dual speakers and dual output. isn't just a radio, it's also a full duplex cross-band and cross-band mobile repeater!
Free Shipping

Availability: In stock

$239.99
$239.99

Details

This radio has been approved by the FCC. Type accepted for Part 90, FCC ID WVTWOUXUN09 (2 Meter, 70cm Version Only)

The Wouxun KG-UV920P-A is a Dual Band UHF/VHF base/mobile two way radio loaded with powerful features at an affordable price. With 40 watts UHF and 50 watts VHF, the KG-UV920P-A provides the maximum power of a mobile radio without the maximum cost.

The KG-UV920P-A features 999 programmable memory channels with CTCSS and DSC encode/decode, DTMF encoding/decoding, priority channel scanning, and twin band simultaneous reception. It's bandwidth selectable, allowing you to select wide or narrow bandwidth at the press of a button. Bands can be freely set on the same channel for VHF TX-UHF RX or UHF TX-VHF RX. It's power selectable as well, with allowing you to select the output power to high. medium or low.

Think that's powerful? It's only the start. The KG-UV920P-A isn't just a radio, it's a full duplex cross-band and cross-band mobile repeater! Choose from five repeater settings - normal radio mode, directional cross-band repeater mode, two way cross band repeater mode, repeater receiving mode (receiver) or repeater transmitting mode (transmitter). You can connect two units together using the 5m extension cable or the microphone connection cable (both included) to set up your own working repeater.

Impressed? Well, listen to this. The KG-UV920P-A also has dual speakers built right into the chassis with multiple speaker channel settings plus an additional speaker built into the DTMF hand microphone. This gives the UV920P-A a total of three supplied speakers!

But wait, there's more. Channel Name edit and display, 76-108Mhz FM radio, 1750Hz burst tone, group calls, 8 group scrambler, low voltage voice prompt, stun and kill function, reduced noise settings, remote control setting and a built-in cooling fan are all included in this package.

That's not all. Wouxun has built in a large, dual frequency LCD display with a 3-color selectable backlight in blue, green or white. The backlit buttons on the front panel help you see them in the dark. The full featured keypad on the handheld speaker mic is also backlit and voice prompts assist you with menu navigation.

The front panel isn't just functional, it's also customizable! The KG920UVP-A includes two kinds of switchboard panels to suit your needs. Choose from an upward facing inclined panel or a flat panel for installation in your vehicle. The front panel as detachable and can be relocated separately from the radio chassis. The included 14 foot extension cable allows you to install it just about anywhere in your vehicle so you can have it right where you need it.

The KG-UV920P-A can also be powered by the optional Wouxun SPS30WIN Power Supply to turn your twin band mobile receiver into a fully operational base station!

The Wouxun KG-UV920P-A comes with hand microphone with speaker, inclined switchboard panel, flat switchboard panel, mobile mounting bracket, remote front panel bracket, mobile power cord, 14 foot extension cable, hand microphone hook, fuses, screw set, an owner's manual and a one year manufacturer warranty from Wouxun.

Optional Programming Cable

For your convenience, an optional USB programming cable (Model PCO-003) is available to program the Wouxun KG-UV920P-A from a computer.

NOTE: Programming software is available for download from the Downloads tab above.

Ham Radio Starter Kit - Complete Package!

The Ham Radio Starter Kit is your discount ticket to the exciting world of amateur radio! Compiled by hams for hams, this kit has everything you need to get you started as an amateur radio operator at minimal cost!

The Ham Radio Starter Kit Mobile/Base Station Edition is a great training package for an amateur radio club Technician License class or instructional program. It comes in handy for a new hams who are just getting started and want to build a ham shack on a budget. It's the perfect gift for that ham in your life who wants a mobile or base station radio to Get On The Air.

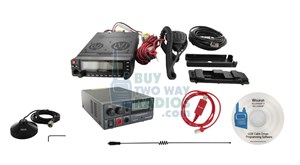

The Ham Radio Starter Kit Mobile Base Station includes:
The Wouxun KG-UV920P-A Dual Band UHF/VHF Base/Mobile Amateur Radio
Wouxun DWC30WIN 30A Switching Power Supply
Tram 1185 Amateur Dual-Band Magnet Antenna
USB Programming Cable

Want a ham radio package that has it all? This is the kit you need!

Videos


Wouxun KG-UV920P-A Features

  • 999 Memory Channels
  • Dual Band
  • 144-148MHz VHF Frequencies
  • 420-450MHz UHF Frequencies
  • Repeater Capable
  • Full Duplex Cross-Band and Cross-Band Repeater
  • 8 Group Scrambler
  • 40W/50W Transmit Power
  • FM Radio
  • Memory Channel
  • Channel Scan
  • Priority Scan
  • Dual Watch
  • Busy Channel Lockout
  • Full Duplex Cross Band and Cross Band Repeater
  • CTCSS/DCS Encode/Decode
  • CTCSS/DCS Tone Scan
  • Selectable 3 Color Backlit LCD Display
  • Backlit Keypad
  • Channel Name Edit and Display
  • Battery Meter
  • Minimum Operating Voltage Alarm
  • Power Saver
  • Auto Power Off
  • Timeout Timer
  • Keypad Lock
  • Audible Button Beeps
  • Voice Promps
  • Dual 3.5mm Speaker Ports
  • Cloning Capable
  • PC Programmable (Requires Optional Cable)
  • Dual Speaker and Dual Output
  • Backlit DTMF Hand Microphone With Speaker
  • Cooling Fan
  • Remote Front Panel Installation Option
  • DTMF Encoding and Decoding
  • Stun and Kill Function
  • Reset
  • One Year Manufacturer Warranty

Included with the Wouxun KG-UV920P-A

  • Wouxun KG-UV920P-A Dual Band Base/Mobile Two Way Radio
  • Hand Microphone
  • Inclined Switchboard Panel (Already Installed)
  • Flat Switchboard Panel
  • Mobile Mounting Bracket
  • Remote Front Panel Bracket
  • Mobile Power Cord
  • Extension Cable
  • Screw Sets
  • Hand Microphone Hook
  • 2 Fuses 15A 32V
  • Owners Manual

Wouxun KG-UV920P-A Specifications

  • Dimensions: 140mm × 44mm × 207mm
  • Weight: 1437.8g (Including Microphone)
  • Antenna Connector Type: SO-239 (UHF Female)

Additional Information

Warranty 1 Year
FCC ID WVTWOUXUN09
Channels 999
Maximum Output Power 50 Watts
Radio Type Mobile
Services Amateur
Digital Standard Analog Only
Integration Repeater Capable
Frequency Bands 1.25 Meter (220), 2 Meter (VHF), 70 cm (UHF)
  1. Works as advertised review by MurphyHam on 12/15/2018
    Rating

    Nice little radio for 144/220. I rarely use 440, so this radio satisfies my needs. Easy to program.
