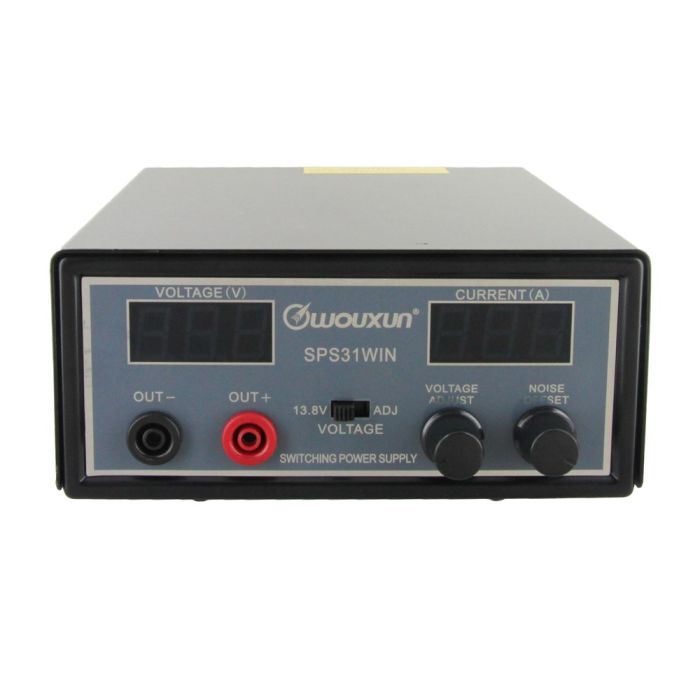

Wouxun SPS31WIN 30A Switching Power Supply with Dual LCD
Wouxun SPS31WIN 30A Switching Power Supply with Dual LCD
SKU: SPS31WIN
The Wouxun SPS31WIN is a 30A switching power supply with two digital LCD meters that lets you turn your Wouxun or other mobile two way radio into a base station. It works with most mobile two way radios, including the Wouxun KG-UV920P and KG-UV950P Mobile / Base Two Way Radio.
Discontinued
A newer product is available:
Wouxun DWC30WIN 30A Switching Power Supply with LCD Display
Wouxun DWC30WIN 30A Switching Power Supply with LCD Display
Description / Wouxun SPS31WIN 30A Switching Power Supply with Dual LCD
The Wouxun SPS31WIN is a 30A switching power supply with two digital LCD meters that lets you turn your Wouxun or other mobile two way radio into a base station.
- Wouxon switching power supply
- Model SPS31WIN
- AC Input Switch: 110V AC/60Hz (default setting) or 220V/50Hz
- Output voltage: 13.8V DC - adjustable between 9.0 and 15.0 V
- Output voltage regulation: less than 2%
- Protection: short-circuit - Automatic current limiting within 30A
- Output current: 30A(max) 20A(continuous)
- Ripple: less than 80mVp-p at rated load
- Fuse: 5A
- Meter: single volt/current meter - backlit LCD
- Dimensions: 155mm(W)x70mm(H)x230mm(D) (projections not included)
- Weight: approx. 1.5kg. (3.10 lbs.)
- Works with most mobile two way radios, including the Wouxun KG-UV920P and KG-UV950P Mobile / Base Two Way Radio
- One year warranty
More Information
| Type | Switching |
|---|---|
| Features | Amp Meter, Fan, Overload Protection, Volt Meter |
| Maximum Amps | 30 |
| Mount Style | Desktop |
| Warranty | 1 Year |
