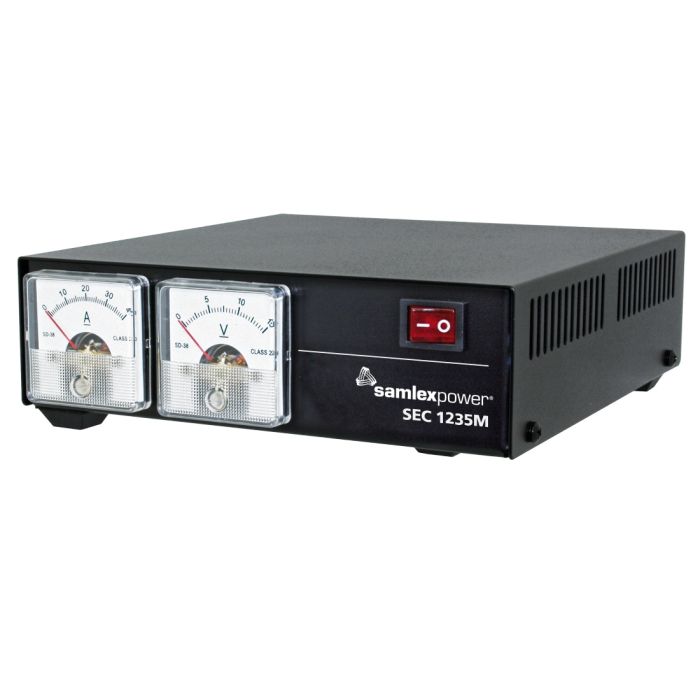

Samlex SEC-1235M 30 Amp Switching Power Supply

Samlex SEC-1235M is a 30 Amp switching power supply designed specifically for land mobile radio applications. This high efficiency, advanced power supply produces clean, reliable power. It's great for converting mobile two way radios to base stations.

Features:

Genuine Samlex high efficiency switching power supply
Advanced switch-mode technology
Voltmeter and ammeter
Reliable power with minimum weight and size
Highly filtered to suppress RFI
Circuit innovations minimize output voltage ripple and RFI
Input voltage can be set at 120VAC or 240VAC (internal jumper)
UL listed to both USA & Canadian safety standards.
Screw terminal connectors
Over-current, short-circuit and over-voltage protection
Detachable power supply cord with NEMA 5-15P plug
Conforms to FCC Part 15(B), class B digital device
Internal AC side fuse
Power ON / OFF switch
Safe for tabletop placement
Part number: SEC-1235M
Designed specifically for land mobile radio applications
Works with mobile two way radios

Technical Specs:

Power Input: 120V AC, 60Hz 7.5A
Power Output: 13.8V DC ± 0.1V continuous: 30A ; current Limit: 35A, auto recovery
DIMENSIONS (W X D X H): 7.28 x 8.19 x 2.4 (in) / 18.5 x 20.8 x 6.1 (cm)
Weight: 3.4 (lbs) / 1.54 (kg)

Applications:

Two way radio base stations
Communications systems
Security systems
Test equipment
Plotters
GPS receivers
Automotive & Marine displays
DC computers
12 Volt lighting systems
OEM applications

Type	Switching
Features	Amp Meter, Fan, Overload Protection, Volt Meter
Maximum Amps	30
Mount Style	Desktop
Warranty	3 Years

Type

Switching

Features

Amp Meter, Fan, Overload Protection, Volt Meter

Maximum Amps

Mount Style

Desktop

Warranty

3 Years
