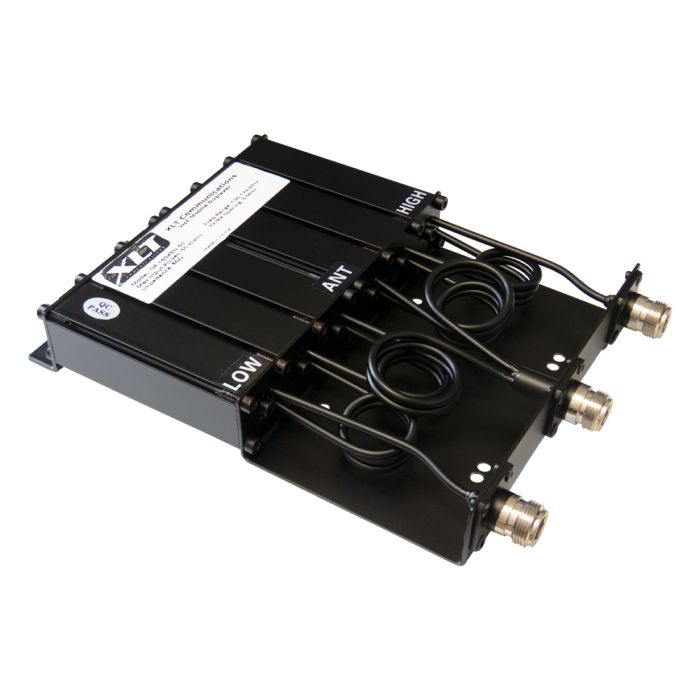

XLT Communications VHF Mobile Duplexer (50 Watt, 140-174 MHz, 5 MHz Split)
XLT Communications VHF Mobile Duplexer (50 Watt, 140-174 MHz, 5 MHz Split)
SKU: DP-150X5N-50
XLT DP-150X5N-50 Mobile Band Duplexer is designed and tuned for use on 140-174 MHz frequencies up to 50 watts. Applications include repeaters up to 50 watts and mobile full duplex radios. Small size allows for it to fit in the chassis for some repeaters.
Free Shipping
In Stock
$199.99
Description / XLT Communications VHF Mobile Duplexer (50 Watt, 140-174 MHz, 5 MHz Split)
XLT DP-150X5N-50 Mobile Band Duplexer is designed and tuned for use on 140-174 MHz frequencies up to 50 watts. Applications include repeaters up to 50 watts and mobile full duplex radios. Small size allows for it to fit in the chassis for some repeaters.
DP-150X5N-50 Specifications
- Mobile band duplexer
- Compact size for installation inside small repeater chassis
- Duplexer can be customized and supports frequency range 140-174 Mhz with 4~20MHz MHz spacing
- Default configured frequencies: 150.5500 / 155.5500
- N Female connectors
DP-150X5N-50 Specifications
- Supported Frequency Range: 140~174 MHz
- Pre-Configured Frequency Range: 150.5500 / 155.5500 MHz
- Return Loss: ＞20dB
- Tx–Rx Separation: 4~20MHz available
- Tx-Rx Band Width: ±100KHz
- Maximum Input Power: 50W
- Rejection: ＞90dB@5MHz spacing at TX side / ＞90dB@5MHz spacing at RX side
- Insertion Loss: ＜1dB@5MHz spacing
- Impedance: 50Ω
- V.S.W.R: ＜1.3 (RX/TX)
- Isolation: ＞90dB@5MHz spacing
- Connectors: N Female
- Temperature range: -4º to 140º F (-20℃~+60℃)
- Humidity: ≤95%
- Dimensions (including connectors): 8.97 x 6.06 x 1.29 inches 228mm x 154mm x 33mm)
- Weight: 2.64 lbs (1.2kg)
- Application: Indoor
- Appearance: Surface sprayed paint black
More Information
| Warranty | 1 Year |
|---|
