XLT 50 Watt Dummy Load w/ N Female Connector / SO-239 (UHF Female) Adapter
Description / XLT 50 Watt Dummy Load w/ N Female Connector / SO-239 (UHF Female) Adapter

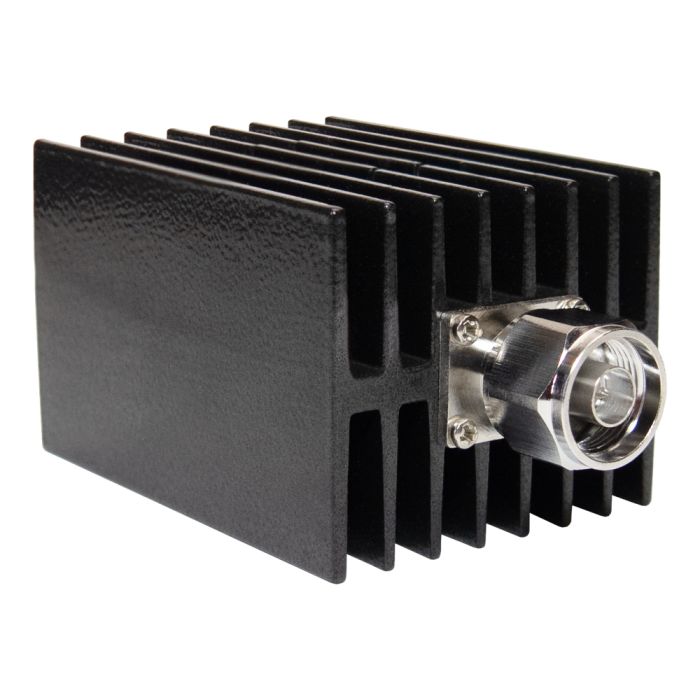

The XLT DL-50B-UF is a 0~3GHz coaxial RF dummy load with N female connector and SO-239 (UHF Female) adapter for mobile and base station two way radios.
- Genuine XLT coaxial RF dummy load
- Frequency Range 0~3GHz
- Model DL-50B-UF
- Impedance 50 Ohm
- PIM3 ≤-105dBc (+33dBm×2)
- Dimensions 2.79 in. x 2.4 in. x 3.15 in. (71mm×61mm×80mm)
- Weight 17.63 oz. (0.5KG)
- Operating temperature -68°F～+140°F (-20℃～+60℃)
- Operating Humidity ≤95%
- Maximum power handling 50W
- N Female connector with UHF Female (SO-239) adapter
- V.S.W.R ≤1.2
- Works with mobile and base station two way radios.
