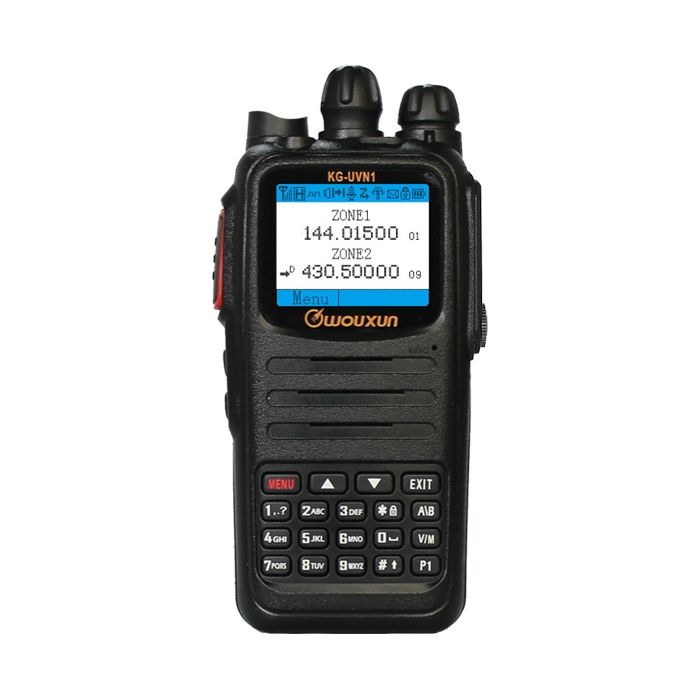

Wouxun KG-UVN1 Dual Band DMR Digital Two Way Radio
Wouxun KG-UVN1 Dual Band DMR Digital Two Way Radio
SKU: KG-UVN1
Get more from your DMR experience with the Wouxun KG-UVN1 Dual Band DMR Digital Portable Two Way Radio! The KG-UVN1 gives you all the benefits of a high end Digital Mobile Radio while you keep your analog connections, all in one portable handheld transceiver! The UVN1 operates on 70cm UHF frequencies at up to 4 watts and 2 meter VHF with up to 5 watts of power on a 12.5kHz channel using Time-Division Multiple-Access (TDMA) digital technology.
Free Shipping
In Stock
$159.99
Description / Wouxun KG-UVN1 Dual Band DMR Digital Two Way Radio
This radio is intended for Amateur Radio use only. See note below for more information.
Get more from your DMR experience with the Wouxun KG-UVN1 Dual Band DMR Digital Portable Two Way Radio! The KG-UVN1 gives you all the benefits of a high end Digital Mobile Radio while you keep your analog connections, all in one portable handheld transceiver! The UVN1 operates on 70cm UHF frequencies at up to 4 watts and 2 meter VHF with up to 5 watts of power on a 12.5kHz channel using Time-Division Multiple-Access (TDMA) digital technology.
The KG UVN1 has 3072 channels, 250 zones, and a whopping 160,000 contacts. The full radioid.net contact database is preloaded onto the radio. It has CTCSS/DCS, digital encryption, channel scan, group scan and text messaging. It features VOX functonality, a full DTMF keypad and programmable multi-function side keys.
The KG-UVN1 is a full featured radio with high end functionality, such as independent programming in VFO and channel modes, Private Call, Group Call, All Call, ARTS function, tail elimination, menu encryption, menu hide, lone worker, and stun/kill/activate options. It has a solid, rugged construction that puts it in the same league for durability as many business class radios.
Of course, it wouldn't be a Wouxun without their legendary full color LCD display, and the KG-UVN1 has it. The large, bright screen of the KG-UVN1 offers maximum visual clarity for the display of menus, graphics and text messages, and two frequency bands with the look and feel of a high end, professional two way radio.
The KG-UVN1 is easy to accessorize. It uses a common SMA Male antenna connector, and the same Kenwood 2-pin (K1) connector used by many other Wouxun radios. If you have another Wouxun, chances are good your headsets, earbuds, speaker mics and other audio accessories will work with the UVN1 as well.
The Wouxun KG-UVN1 is compatible with other makes and models of DMR supported radios. It is Tier I & II compatible. It is also compatible with any existing analog two-way radio operating on the supported UHF and VHF frequencies on the Amateur Radio bands.
Includes one Wouxun KG-UVN1 Dual Band UHF/VHF digital DMR/analog two way radio, antenna, belt clip, AC charger, 2600mAh lithium-ion rechargeable battery, wrist strap, owner's manual and one year manufacturer warranty.
Wouxun is producing this radio with two different firmware versions: one with support for 160,000 contacts, and the other with support for 8 hours of recording. We are shipping the 160,000 contact version. As such, it does not include the 8 hour recording function in order to accommodate the additional contacts.
Disassembly, hardware or software hacks may damage your radio or render it inoperable and will void the manufacturer warranty. Customers who attempt to modify, hack, reverse engineer or otherwise attempt to alter the Wouxun KG-UVN1 radio from its original specifications with the use of hardware or software hacks do so at their own risk.
Get more from your DMR experience with the Wouxun KG-UVN1 Dual Band DMR Digital Portable Two Way Radio! The KG-UVN1 gives you all the benefits of a high end Digital Mobile Radio while you keep your analog connections, all in one portable handheld transceiver! The UVN1 operates on 70cm UHF frequencies at up to 4 watts and 2 meter VHF with up to 5 watts of power on a 12.5kHz channel using Time-Division Multiple-Access (TDMA) digital technology.
The KG UVN1 has 3072 channels, 250 zones, and a whopping 160,000 contacts. The full radioid.net contact database is preloaded onto the radio. It has CTCSS/DCS, digital encryption, channel scan, group scan and text messaging. It features VOX functonality, a full DTMF keypad and programmable multi-function side keys.
The KG-UVN1 is a full featured radio with high end functionality, such as independent programming in VFO and channel modes, Private Call, Group Call, All Call, ARTS function, tail elimination, menu encryption, menu hide, lone worker, and stun/kill/activate options. It has a solid, rugged construction that puts it in the same league for durability as many business class radios.
Of course, it wouldn't be a Wouxun without their legendary full color LCD display, and the KG-UVN1 has it. The large, bright screen of the KG-UVN1 offers maximum visual clarity for the display of menus, graphics and text messages, and two frequency bands with the look and feel of a high end, professional two way radio.
The KG-UVN1 is easy to accessorize. It uses a common SMA Male antenna connector, and the same Kenwood 2-pin (K1) connector used by many other Wouxun radios. If you have another Wouxun, chances are good your headsets, earbuds, speaker mics and other audio accessories will work with the UVN1 as well.
The Wouxun KG-UVN1 is compatible with other makes and models of DMR supported radios. It is Tier I & II compatible. It is also compatible with any existing analog two-way radio operating on the supported UHF and VHF frequencies on the Amateur Radio bands.
Includes one Wouxun KG-UVN1 Dual Band UHF/VHF digital DMR/analog two way radio, antenna, belt clip, AC charger, 2600mAh lithium-ion rechargeable battery, wrist strap, owner's manual and one year manufacturer warranty.
Note
This radio is limited to operation on frequencies within the 2 meter and 70cm amateur radio bands as required by the FCC.Wouxun is producing this radio with two different firmware versions: one with support for 160,000 contacts, and the other with support for 8 hours of recording. We are shipping the 160,000 contact version. As such, it does not include the 8 hour recording function in order to accommodate the additional contacts.
Disassembly, hardware or software hacks may damage your radio or render it inoperable and will void the manufacturer warranty. Customers who attempt to modify, hack, reverse engineer or otherwise attempt to alter the Wouxun KG-UVN1 radio from its original specifications with the use of hardware or software hacks do so at their own risk.
Optional Programming Cable
For your convenience, an optional USB programming cable is available to program the Wouxun KG-UVN1 from a computer.
NOTE: Programming software is available for download from the Downloads tab above.
Wouxun KG-UVN1 Specifications
- 3072 Channels
- 250 Zones
- 255 Receiving Groups
- 160,000 Contacts
- Full RadioID.net Contact Database Preloaded
- 144-148 MHZ VHF Amateur Frequencies
- 420-450MHz UHF Amateur Frequencies
- Built-in CTCSS/DCS
- 5W VHF/4W UHF Output Power
- Repeater Capable
- Uses Li-ion Rechargeable Battery Packs
- Rechargeable Li-ion Battery Pack Included
- Includes Charger
- Emergency Alarm
- VOX
- Encryption (Digital Mode Only)
- Private Call/Group Call/All Call
- Text Messaging (Digital Mode)
- Flashlight
- Channel Scan
- Priority Scan
- ARTS Function
- LED Status Light
- Color LCD Display
- Lighted DTMF Keypad
- Hi/Low Power Selectable
- Signal Strength Indicator
- Battery Meter
- Low Battery Alert
- Battery Saver
- 3 Programmable Multifunction Keys
- PC Programmable (Optional Software and Cable Required)
- Timeout Timer
- Keypad Lock
- Audible Button Beeps
- FM Radio
- Tail Elimination
- Lone Worker
- Drop-In Charge Capable
- Audio Accessory Connector
- TDMA
- DMR
- Tier I & II Compatible
- Independent Programming in VFO/CH Modes
- Radio Program Password
- Menu Encryption
- Menu Hide
- Stun/Kill/Activate
- Reset
- One Year Manufacturer Warranty
Included with the Wouxun KG-UVN1
- Wouxun KG-UVN1 Dual Band DMR Digital Two Way Radio
- Li-ion Battery
- Antenna
- Belt Clip
- AC Adapter
- Desktop Charger
- Wrist Strap
- Owners Manual
Wouxun KG-UVN1 Specifications
- Dimensions (Without Antenna): 5.11 in. x 2.51 in. x 1.61 in. (130mm​ x 64mm x 41mm)
- Weight (With Battery): 11.71 oz (331.97 g)
- Antenna connector type: SMA Male
More Information
| Warranty | 1 Year |
|---|---|
| Maximum Output Power | 5 Watts |
| Radio Type | Handheld |
| Services | Amateur |
| Safety Features | Flashlight |
| Digital Standard | DMR |
| Integration | Repeater Capable |
| Frequency Bands | 2 Meter (VHF), 70 cm (UHF) |
| Battery Chemistry | Lithium |
