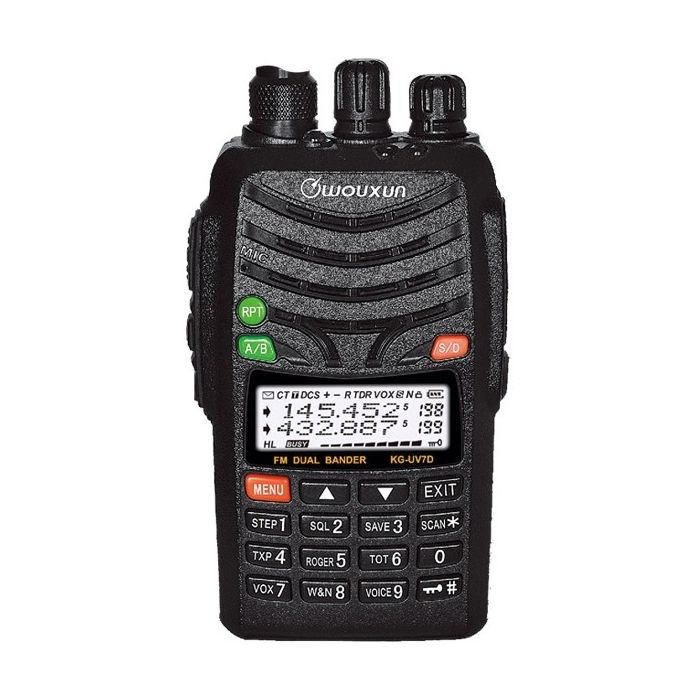

Wouxun KG-UV7D High Power Dual Band Amateur Radio

DUAL BAND!! DUAL FREQUENCY!! UP TO 7 WATTS POWER ON 2 METERS VHF!!

Quick Overview

Want a handheld with more power? Here it is! The Wouxun KG-UV7D is a high power dual band radio loaded with powerful features at an affordable price. With a whopping 7 watts VHF on 2 meters, and 5 watts on the alternative band the KG-UV7D provides the RF carrier power of a high end portable handheld without the high end cost. Available in 2M/70cm (UHF 420-450 MHz), 2M/1.25M (220 MHz) and 2M/6M (50-54 MHz) frequency ranges.
Free Shipping

Availability: In stock

$119.99
$119.99

Details

Now available - your choice of 2M/70cm, 2M/1.25M and 2M/6M versions!

The 2M/70cm version radio has been approved by the FCC. Type accepted for Part 90, FCC ID WVTWOUXUN07. The 1.25M and 6M versions are for amateur use only.

Want a handheld with more power? Here it is! The Wouxun KG-UV7D is a high power dual band radio loaded with powerful features at an affordable price. With a whopping 7 watts VHF on 2 meters, and 5 watts on the alternative band the KG-UV7D provides the RF carrier power of a high end portable handheld without the high end cost. Available in 2M/70cm (UHF 420-450 MHz), 2M/1.25M (220 MHz) and 2M/6M (50-54 MHz) frequency ranges.

The KG-UV7D features 199 programmable memory channels with CTCSS and DSC Scan, priority channel scanning, and 1750 Hz burst tone. It's bandwidth selectable, allowing you to select wide or narrow bandwidth at the press of a button. Bands can be freely set on the same channel for VHF TX-UHF RX or UHF TX-VHF RX. It's power selectable as well, giving you the option to transmit in high or low power mode.

But the features don't end there. Wouxun has built in a lighted LCD display that is selectable in Channel Mode, and a Power-On display message that is customizable. The full featured keypad is also backlit and voice prompts assist you with menu navigation.

Want more features? Channel Name edit and display, Dual Standby, 76-108Mhz FM radio, DTMF encoding, Transmit Overtime Voice Prompt, low voltage voice prompt, channel name edit and display, SOS function, VOX (Voice Operated Transmit) for hands-free operation and a high illumination flashlight are all standard on this radio.

The UV7D is also rated IP55 water resistant, a plus when taking it with you outdoors.

The KG UV7D is powered by 7.4v 1700mAh (12.58Wh) Li-Ion battery pack for many hours of operation. Power Saver Mode helps increase efficiency and preserve battery life.

The Wouxun KG-UV7D comes with a rechargeable Li-Ion battery pack, belt clip, removable antenna, wrist strap, desktop charger, AC cord, owner's manual and a one year manufacturer warranty from Wouxun.

Wouxun KG-UV7D Features

  • 199 Memory Channels
  • Dual Band
  • 2M/70cm Version: 137-174MHz VHF Frequencies (RX only) / 144-148MHz (TX only)
  • 2M/70cm Version: 375-512MHz UHF Frequencies (RX only) / 420-450MHz (TX only)
  • 2M/1.25M Version: 137-174MHz VHF Frequencies (RX only) / 144-148MHz (TX only)
  • 2M/1.25M Version: 216-260MHz UHF Frequencies (RX only) / 222-225MHz (TX only)
  • 2M/6M Version: 137-174MHz VHF Frequencies (RX only) / 144-148MHz (TX only)
  • 2M/6M Version: 50-53.995MHz VHF Frequencies (RX/TX)
  • Repeater Capable
  • 7 Watt VHF Transmit Power
  • 5 Watt UHF Transmit Power (70cm Version)
  • 5 Watt Transmit Power on 220MHz (1.25M Version)
  • 5 Watt Transmit Power 50MHz (6M Version)
  • Li-Ion Battery Pack
  • Rechargeable Battery Included
  • Battery Charger
  • FM Radio
  • Bandwidth Selectable
  • Channel Memory
  • Channel Scan
  • Priority Scan
  • Multi Scan Mode
  • High / Low Power Selection
  • Burst Tone 1750Hz
  • Busy Channel Lockout
  • Reverse Frequency Function
  • CTCSS/DCS Tones
  • CTCSS/DCS Tone Scan
  • Backlit LCD Display
  • Backlit Keypad
  • Customizable Power-On Display Message
  • Channel Name Edit and Display
  • Battery Meter
  • Low Battery Alert
  • Power Saver
  • Auto Power Off
  • Timeout Timer
  • Transmit Overtime Voice Prompt
  • SOS Function
  • VOX
  • Auto / Manual Keypad Lock
  • Audible Button Beeps
  • Begin / End Transmitting Beep Prompt
  • Drop-In Charge Capable
  • Audio Accessory Connector
  • Cloning Capable
  • PC Programmable (Requires Optional Cable)
  • IP55 Water Resistant
  • LED Flashlight
  • Stopwatch
  • DTMF Code
  • Reset
  • One Year Manufacturer Warranty

Included with the Wouxun KG-UV7D

  • Wouxun KG-UV7D Two Way Radio
  • Li-Ion Battery Pack
  • Removable Antenna
  • Belt Clip
  • Wrist Strap
  • Charger Tray
  • AC Cable
  • Owners Manual

Wouxun KG-UV7D Specifications

  • Dimensions: 65mm × 119mm × 39mm
  • Weight: 253g
  • Antenna connector type (2m/70cm version): SMA Female (Standard)
  • Antenna connector type (2m/1.25m version): SMA Female (Standard)
  • Antenna connector type (2m/50Mhz version): SMA Female (Standard)

Additional Information

Warranty 1 Year
IP Rating IP55
FCC ID WVTWOUXUN07 (2M/70cm), WVTWOUXUN05 (1.25M), WVTWOUXUN04 (6M)
Channels 199
Maximum Output Power 5 Watts
Radio Type Handheld
Services Amateur
Safety Features Flashlight
Digital Standard Analog Only
Integration Repeater Capable
Frequency Bands 1.25 Meter (220), 2 Meter (VHF), 6 Meter, 70 cm (UHF)
