Wouxun KG-B55 Dual Band 2m/440 Base Station

Home
Wouxun KG-B55 Dual Band 2m/440 Base Station

Product was successfully added to your shopping cart.

Details

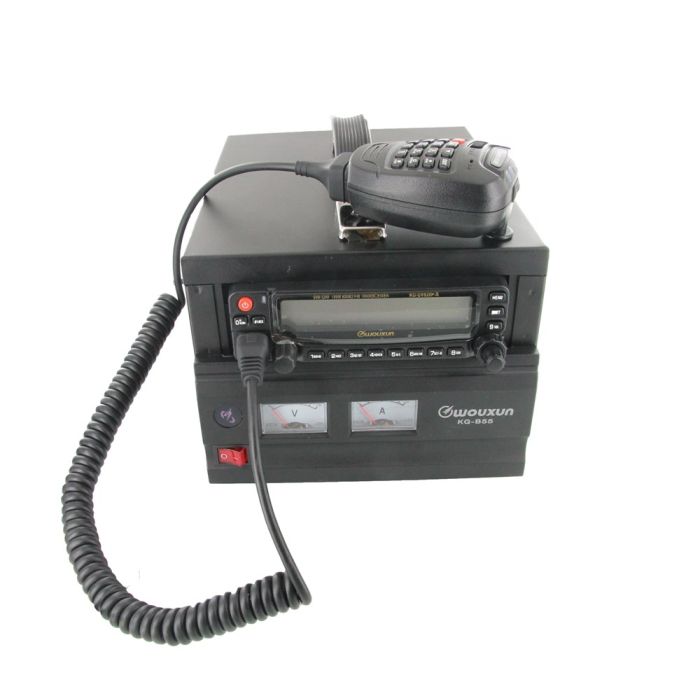

The Wouxun KG-B55 Dual Band UHF/VHF base station combines the ever popular KG-UV920P-A dual band mobile radio with dedicated a power supply into one, solid, standalone unit loaded with powerful features! Pre-wired, mounted together, complete with carrying handle, the KG-B55 provides the full base station operation at a minimal cost!

The KG-B55 features the powerful KG-UV920P-A dual band two way radio with its 999 programmable memory channels and twin band simultaneous reception. Select wide or narrow bandwidth at the press of a button and freely set bands on the same channel for VHF TX-UHF RX or UHF TX-VHF RX. It's power selectable as well. Choose from high, medium or low power options according your needs.

Want more than just a base station? How about a cross-band repeater? With the KG-UV920P-A installed, the KG-B55 is a full duplex cross-band and cross-band mobile repeater with five repeater settings - normal radio mode, directional cross-band repeater mode, two way cross band repeater mode, repeater receiving mode (receiver) or repeater transmitting mode (transmitter). You can even connect two units together to set up your own working repeater.

Other features include a 76-108Mhz FM radio, 1750Hz burst tone, group calls, 8 group scrambler, low voltage voice prompt, channel Name edit and display, stun and kill function, reduced noise settings, remote control setting and a built-in cooling fan.

The KG-UV920P-A makes the KG-B55 base station even better with its large, dual frequency LCD display and a 3-color selectable backlight, handheld speaker mic with full featured backlit keypad, dual speakers built into the radio chassis and voice prompts to assist with menu navigation.

The KG-B55 is powered by a power supply that is built into the unit to deliver a constant 13.8V to the radio. The power supply features two analog meters, one for for volts and one for amps.tion!

The Wouxun KG-B55 comes with hand microphone with speaker, an owner's manual and a one year manufacturer warranty from Wouxun.

Optional Programming Cable

For your convenience, an optional USB programming cable (Model PCO-003) is available to program the Wouxun KG-UV920P-A from a computer.

NOTE: Programming software is available for download from the Downloads tab above.

Wouxun KG-B55 Features

999 Memory Channels
Dual Band
144-148MHz VHF Frequencies
420-450MHz UHF Frequencies
220MHz Frequencies (220 Version Only)
Repeater Capable
Full Duplex Cross-Band and Cross-Band Repeater
8 Group Scrambler
40W/50W Transmit Power
FM Radio
Memory Channel
Channel Scan
Priority Scan
Dual Watch
Busy Channel Lockout
Full Duplex Cross Band and Cross Band Repeater
CTCSS/DCS Encode/Decode
CTCSS/DCS Tone Scan
Selectable 3 Color Backlit LCD Display
Backlit Keypad
Channel Name Edit and Display
Battery Meter
Minimum Operating Voltage Alarm
Power Saver
Auto Power Off
Timeout Timer
Keypad Lock
Audible Button Beeps
Voice Promps
Dual 3.5mm Speaker Ports
Cloning Capable
PC Programmable (Requires Optional Cable)
Dual Speaker and Dual Output
Backlit DTMF Hand Microphone With Speaker
Cooling Fan
Remote Front Panel Installation Option
DTMF Encoding and Decoding
Stun and Kill Function
Reset
One Year Manufacturer Warranty

Included with the Wouxun KG-B55

Wouxun KG-B55 Dual Band 2m/440 Base Station
Hand Microphone
Owners Manual

Wouxun KG-B55 Specifications

Dimensions: 5 11/16" (H) x 7 1/32" (W) x 10 3/32" (D) / 178.59mm × 144.46mm × 256.38mm
Weight:: 14.15 lbs. / 6.41kg (Including Microphone)
Antenna Connector Type: SO-239 (UHF Female)

Additional Information

Warranty	1 Year
FCC ID	WVTWOUXUN09
Maximum Output Power	50 Watts
Radio Type	Base Station
Services	Amateur
Digital Standard	Analog Only
Integration	Repeater Capable
Frequency Bands	1.25 Meter (220), 2 Meter (VHF), 70 cm (UHF)
