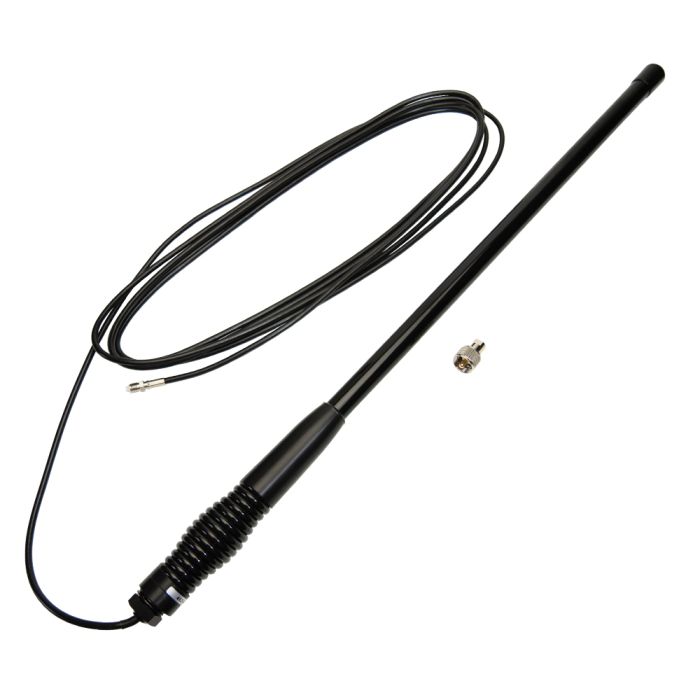

Wouxun 24" Spring Mounted GMRS Antenna for Offroad Vehicles (ANO-058G)
Description / Wouxun 24" Spring Mounted GMRS Antenna for Offroad Vehicles (ANO-058G)
Wouxun ANO-058G is a spring mounted mobile GMRS antenna designed with offroad vehicles in mind. Works with mobile GMRS two way radios, including the KG-1000G and KG-XS20G.
- Genuine Wouxun OEM accessory
- Supported Frequency Range: 400-470 MHz
- Tuned Transmit Frequency Range: 462-467 MHz
- dBi: 3dBi (no line loss)
- 50 Ω
- VSWR: ≤1.5
- Polarization: Vertical
- Radiation: Omni
- Radiating z Material: Cu
- Maximum Power Input-watts: 50 W
- 14.76 ft (4.5 meter) RG58U coaxial cable with an FME connector and FME to UHF PL259 screw on adapter
- Small diameter FME connector allows for easier routing of cable
- Includes detachable PL-259 (UHF Male) connector
- Spring tension mount
- Made with glass fiber reinforced plastic pipe, POM, stainless steel
- Height: 24.75 in (62.86cm)
- Diameter at base: 0.42 in (10.8mm)
- Weight: 1.50 lbs (680.38g)
- Color: Black
- Model: ANO-058G
- Designed to works with mobile GMRS radios, including the Wouxun KG-1000G, KG-1000G Plus, KG-XS20G, and KG-XS20G Plus
More Information
| Warranty | 6 Months |
|---|---|
| Service / Frequency | GMRS |
| Number of Bands | Single Band |
| Connector | UHF Male (PL-259) |
