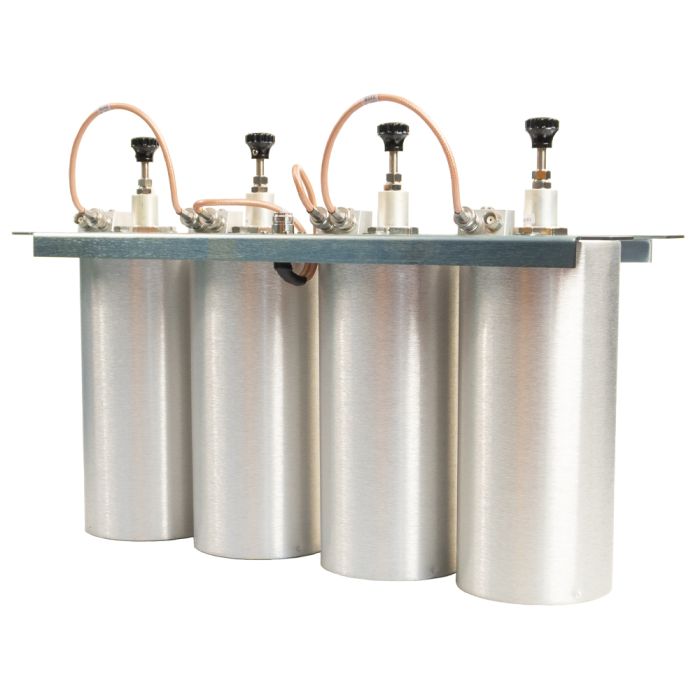

TX RX Systems Vari-Notch Rack Mount Duplexer (450-470 MHz, 5 MHz Split)
TX RX Systems Vari-Notch Rack Mount Duplexer (450-470 MHz, 5 MHz Split)
SKU: 28-70-02A
TX RX Systems 28-70-02A Vari-Notch® Rack Mount Duplexer is designed and tuned for use on 450-470 MHz frequencies with a 5 MHz Split at up to 350 watts. TX RX duplexers provide the transmitter and noise suppression you need for your repeater while minimizing loss.
In Stock
$1,299.99
Description / TX RX Systems Vari-Notch Rack Mount Duplexer (450-470 MHz, 5 MHz Split)
TX RX Systems 28-70-02A Vari-Notch® Rack Mount Duplexer is designed and tuned for use on 450-470 MHz frequencies with a 5 MHz Split at up to 350 watts. TX RX duplexers provide the transmitter and noise suppression you need for your repeater while minimizing loss.
Note: Requires tuning. You can tune it yourself or we can custom tune it for a nominal fee, It's your choice!
- Rack mount duplexer
- Vari-Notch® (pseudo-bandpass) circuit type
- Frequency Range: 450-470 MHz
- 100dB isolation per channel
- 46dB isolation between channels
- 0.6dB insertion loss
- Built with rugged, high quality cavities
- Welded construction
- Silver-plated loops
- Alballoy-plated integrated loop plates and connectors
- Unique fingerstock-free high conductivity silver-plated tuning probe
- Hardened aluminum outer conductor
- Duplexer can be customized and supports frequency range 450-470 MHz with 5 MHz split
- BNC connectors on cavities
- N Female antenna connector
- 4 Cavities
- Cavity size: 4” (102 mm) diameter
- Mount type: 19” reverse flush rack mount
- Dimensions: 5.25” x 19” x +3”/-9” (133 x 483 x +76/-229 mm)
- Weight: 16 lbs (7.3kg)
- Application: Indoor
Note: Requires tuning. You can tune it yourself or we can custom tune it for a nominal fee, It's your choice!
More Information
| Warranty | 1 Year |
|---|
