Details
This model measures NXDN (FDMA) digital. For DMR (TDMA) choose the DG-503MAX.

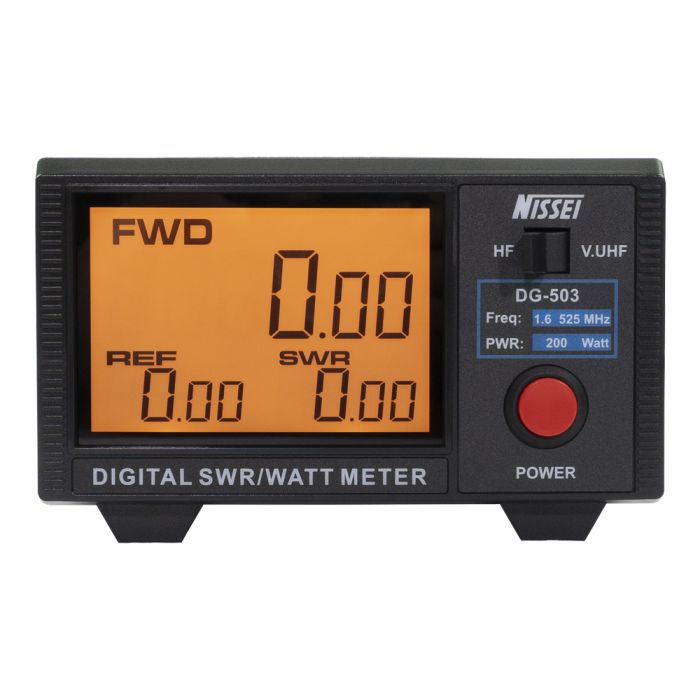

The Nissei DG-503 is a digital power and S.W.R. meter for analog and digital two way radios with a maximum measurable power range of up to 200W. It has UHF Female (SO-239) in and out connectors.
The Nissei DG-503 is a digital power and S.W.R. meter for analog and digital two way radios with a maximum measurable power range of up to 200W. It has UHF Female (SO-239) in and out connectors.
- highly accurate for measuring Forward Power, Reflected Power, and the VSWR of Analog and Digital transceivers
- Large LCD (3.5″) backlit display for easy of reading
- Measurement (Analog mode): CW, FM, FDMA
- Calibration point: 28 / 145 / 435 MHz
- Maximum measurable power range up to 200W
- Minimum Power for SWR 1W
- Checks your antenna SWR
- Checks your radio RF power wattage
- Easy to install
- DC Power source: 12V DC Wire
- Applicable rechargeable battery.
- Convenient control layout for easy operation.
- Frequency range: 1.6-60 MHz / 125-525 MHz
- Insertion Loss: Less than 0.1 dB
- Testing functions: Fwd/Rev Power, SWR ratio
- Accuracy: (AVG) + / - 5%
- Impedance: 50 Ohm
- Interface (in and out): UHF female (SO-239)
- Includes operation manual and DC 12V wire
- Model number: DG-503
- Dimensions: 5.51 in.(W) x 3.30 in. (H) x 4.80 in. (D) / 140 x 84 x 122 mm
- Net Weight: 1.65 lbs. / 750g
Additional Information
| Warranty | 90 Days |
|---|
