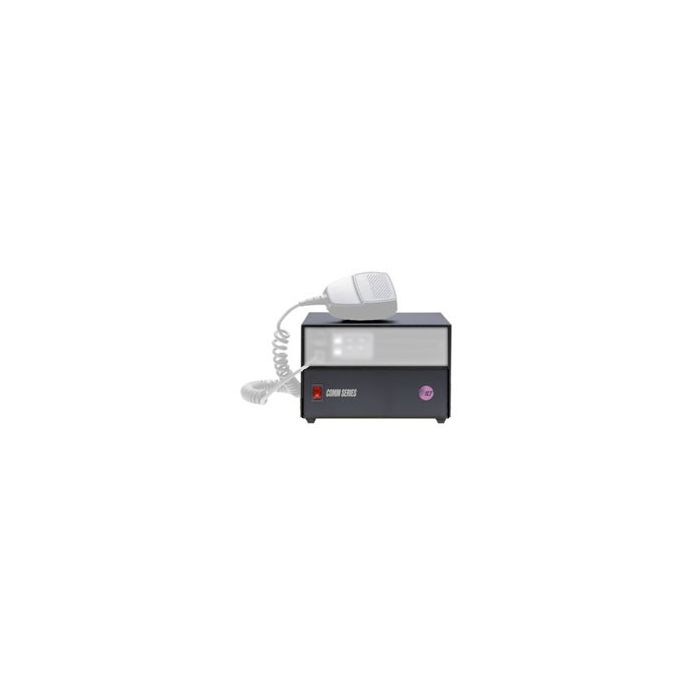

The ICT IAPS04 (formerly CS120-20AG/ICO4) combines the ICT12012-20AG switching power supply with BASE-ICO4 base station cover to create a complete, ready-to-use base station assembly designed and customized to house and convert select Icom mobile radios into a fully functional base station. The ICT power supply incorporates extra filtering, providing a virtually noise-free environment and trouble-free operation.
- ICT12012-20AG switching power supply
- BASE-ICO4 base station cover
- Model IAPS04 (formerly CS120-20AG/IC04)
- Attractive finish
- Lightweight
- Sleek profile
- Easy to install
- Input voltage: 90 - 130 VAC
- Input Frequency Range: 50 - 60 Hz
- Output voltage: 13.8 VDC +/- 150 mV
- Output current: 20.0 Amps(peak) 17.0 Amps(continuous)
- Current Limiting: 20.5 Amps
- Line Regulation: 0.20%
- Load Regulation: 0.85%
- Output Ripple (Max): 25 mV RMS
- Efficiency (Min): 85%
- Fuse: 5A
- Operating Temperature: -50°F to 125°F
- Dimensions (L x W x H): 8.51" x 6.45" x 4.2" / 21.61cm x 16.38cm x 10.66cm
- Weight: approx. 2.22kg. (4.9 lbs.)
- Works with Icom F121S, F221S, F5011, F5021, F5121D, F5220D, F6011, F6021, F6121D and F6220D mobile radios.
- One year warranty
Additional Information
| Warranty | 1 Year |
|---|
