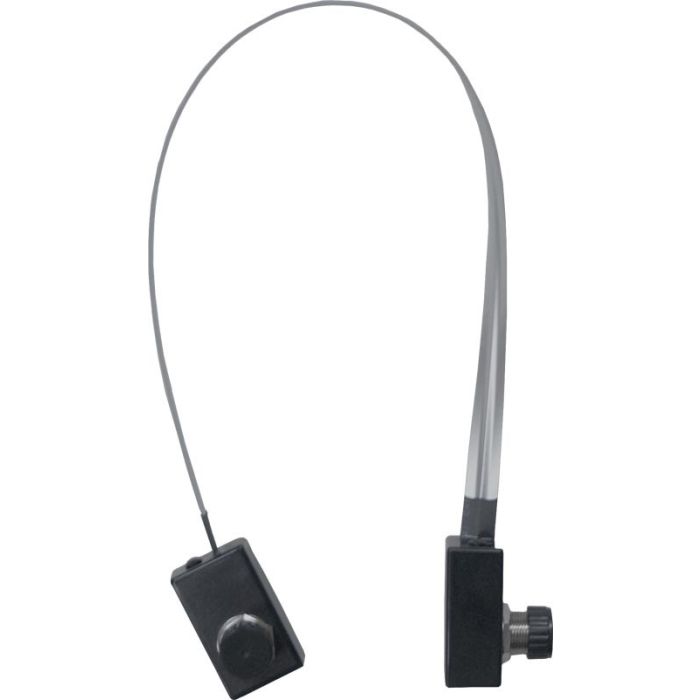

Diamond Antenna MGC50 Through Window/Door Assembly
Description / Diamond Antenna MGC50 Through Window/Door Assembly
- Diamond Antenna through window/door cable set
- Frequency: DC to 1500MHz
- Max Power Rating: HF to 50MHz: 150w (SSB), 50w(FM/CW), 144MHz: 40w (FM), 440MHz: 30w (FM), 1200 MHz: 10w (FM)
- Length: 19.7" (between connectors)
- Weight: 102g
- Connector: UHF Female to UHF Female
- VSWR: HF up to 500MHz: Less than 1.2, 500 to 1000MHz : Less than 1.3, Up to 1000MHz: Less than 2.0, 1200MHz: Less than 1.7
- Impedance: 50 ohms
- Insertion Loss: 144MHz: Less than 0.3dB, 440MHz: Less than 0.6dB, 1200MHz: Less than 1.6dB
- Connects your radio to an external antenna outside your window
- Model number: MGC50
