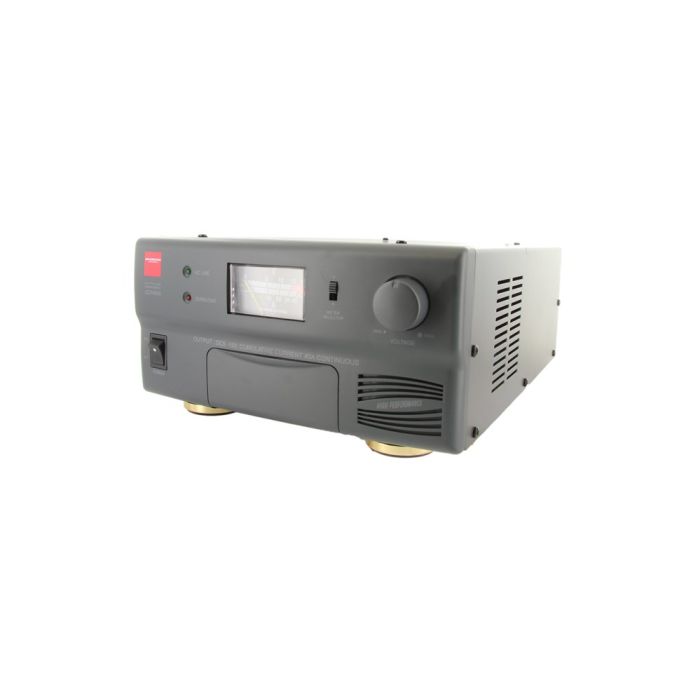

Diamond Antenna GZV4000 40 Amp DC Power Supply
Description / Diamond Antenna GZV4000 40 Amp DC Power Supply
- Diamond Antenna switching mode DC Power Supply
- Size: 8.25" x 4.5" x 13"
- 40 Amp Continuous Rating, 100% Duty Cycle
- Variable Voltage Control 5-15 VDC
- Voltage Control Knob has center detent at 13.5 VDC
- Overload & short-circuit protection with Current Foldback at approximately 42 Amp
- Over Temperature Protection; variable speed fan automatically controlled for quiet operation
- Access to front panel DC terminals and cigarette lighter jack; standard 40A terminals on rear panel
- Meter Selector allows monitoring of voltage & current
- AC line filter for EMI protection
- Built-in 8W speaker
- Weight: 8 lbs.
- Standard 3-wire heavy duty line cord
- Power Indicator & Overload Indicator
- Accepts 120 VAC ± 20% 50-60 cps (Not compatible with 220V)
- Diamond Antenna switching mode DC Power Supply
- Ripple & Noise less than 8 mV r.m.s.
- Model number: GZV4000
- 1 Year Limited Warranty
More Information
| Type | Switching |
|---|---|
| Features | 12 Volt Port, Amp Meter, Fan, Overload Indicator, Overload Protection, Volt Meter |
| Maximum Amps | 40 |
| Mount Style | Desktop |
| Warranty | 1 Year |
