Details

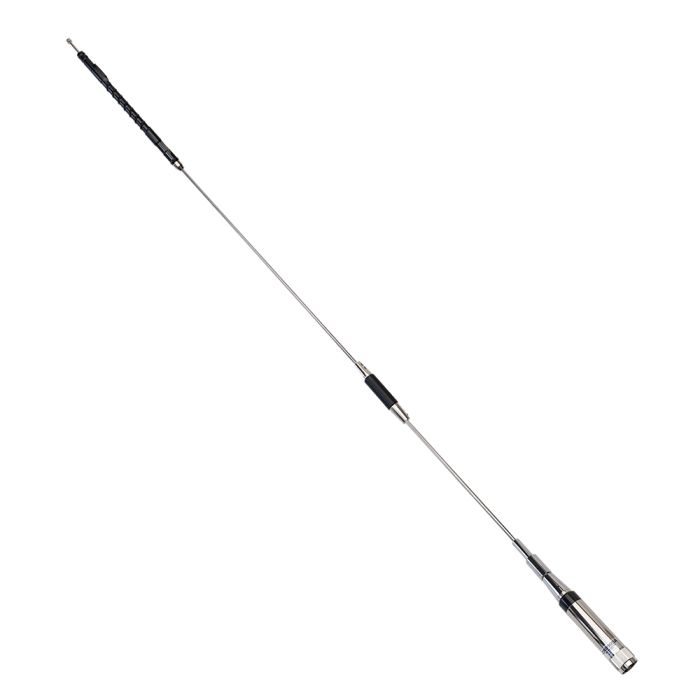

Diamond Antenna CR8900A is a quad band mobile antenna system for HF/VHF/UHF transceivers.
- Bands: 70cm, 2m, 6m and 10m
- US banding
- Gain dBi: 2.15 (10m/6m/2m); 5.5 (70cm)
- Watts: 60
- UHF Male (PL-259) connector
- Element Phasing: 1/4l-10/6; 1/2l-2m;2-5/8l-70cm
- Model number: CR8900A
- Height: 50"
- SWR: 1:5:1 nominal
- Pre-tuned to give best bandwidth and VSWR when mounted on the side of vehicle (i.e. trunk lid)
- Fold-over hinge allows easy access into low overhead buildings
- Suggested mount: Diamond Antenna K400 and K600 Series
- Works with Wouxun KG-UV950P, KG-UV980P, KG-1000G, KG-1000M, Yaesu FT8900, TYT TH-9800 and similar quad band two way radios.
Includes:
- Allen wrench
- Instructions
Note: This antenna requires direct ground. Not designed for magnetic mounts.
