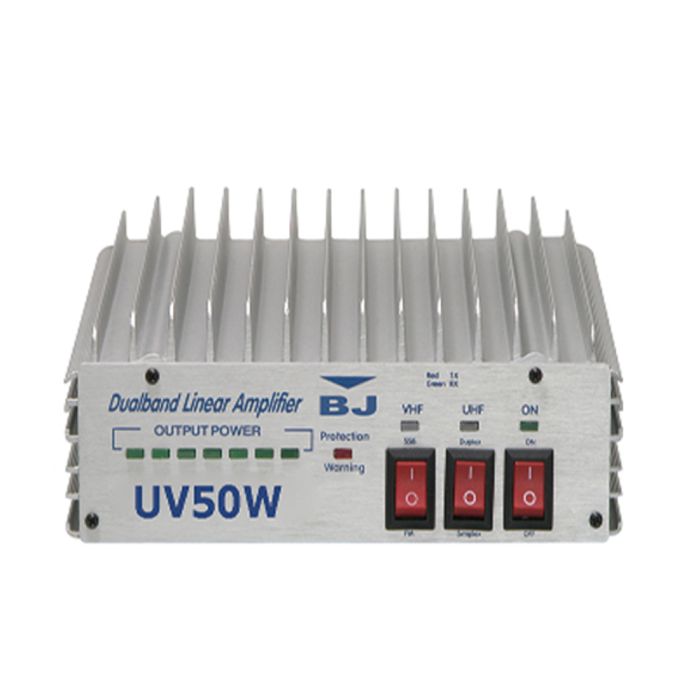

Baojie BJ UV50W Handheld Ham Radio Amplifier (140-150, 440-450 MHz)
Description / Baojie BJ UV50W Handheld Ham Radio Amplifier (140-150, 440-450 MHz)
The Baojie BJ UV50W is a dual band linear amplifier for handheld radios up to 5 watts. It amplifies the output of a portable handheld radio up to 50 watts on 140-150MHz VHF and 440-450 MHz UHF.
Note: do not attach radios to this device that are capable of transmitting above 5W! Higher power devices may damage the unit.
Important: Do not attempt to operate this amplifier without an antenna attached. Doing so may damage the unit and void the warranty.
- Frequencies: VHF (140-150MHz) & UHF (440-450MHz)
- Frequency Space: 10MHz
- Output Power: 12-14 V
- Input Current: 5-8 A
- Input power: 3-5 W
- Output power: 40W - 50W Max
- Mode: FM
- Fuse: 10 A
- Output Power Level: 1
- Electronic switch
- Inversion polarity protection
- Size: 6.69 x 7.48 x 2.36 in. / 170 x 190 x 60 mm
- Weight: 3.30 Lbs. / 1.5kg
- 12 months warranty except final transistor
- For handheld two way radios up to 5W.
Note: do not attach radios to this device that are capable of transmitting above 5W! Higher power devices may damage the unit.
Important: Do not attempt to operate this amplifier without an antenna attached. Doing so may damage the unit and void the warranty.
More Information
| Connector | UHF Female (SO-239) |
|---|---|
| Warranty | 1 Year |
