Baofeng UV-28M 10W Multi Band Amateur Radio
Baofeng UV-28M 10W Multi Band Amateur Radio
SKU: UV-28M
TRI-BAND TRANSMIT!! MULTI-BAND RECEIVE!!

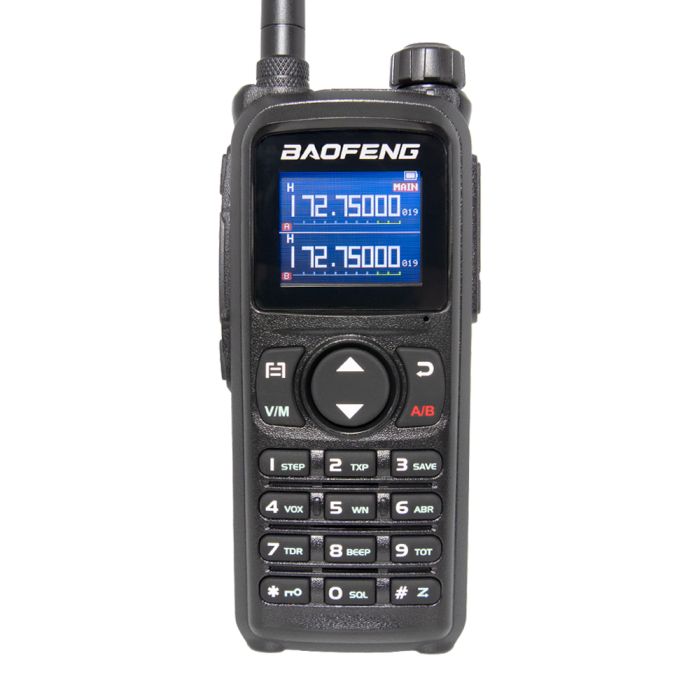

The Baofeng UV-28M is an economical, multi band Amateur Radio with a powerful feature set. With up to 10W high power and long battery life, the UV-28M can provide clear, long-range communications at very low cost.
In stock
$43.99
Description / Baofeng UV-28M 10W Multi Band Amateur Radio
This radio has been approved by the FCC for amateur use only. Type accepted for Part 15B, FCC ID 2AJGM-UV28PRO
The Baofeng UV-28M is a multi-band handheld for licensed amateur operators, combining wide coverage with a clear, menu-driven interface. It transmits on the 144-148 MHz VHF (2 meter), 222-225Mhz (1.25 meter) and 420-450 MHz (70cm) ham bands at up to 10W of power. It can also receive on multiple bands, including FM broadcast 76–108 MHz (RX), AM airband 108–136 MHz, NOAA Weather Radio channels for the U.S. and Canada, 136–174 MHz, VHF2 220–260 MHz, 350–390 MHz and 400–520 MHz. Selectable frequency steps provide precise tuning across bands.
The UV-28M has a bright 1.77" TFT display, full keypad, and open menu system to make programming straightforward, from naming channels to setting repeater offsets. Store up to 999 memories and monitor them efficiently with dual watch and dual reception. The radio offers channel and frequency scanning with multiple modes, while one-touch frequency search and easy pairing/grouping let you clone channel configurations for faster field programming.
The UV-28M offers on-air control and convenience. Choose high or low power, enable VOX for hands-free operation, activate Busy Channel Lockout and use the configurable Time-Out Timer to manage traffic. Ten squelch levels help tame weak-signal noise. DTMF encoding and manual dialing expand control options. An end-of-transmission roger beep is available when needed. A power-on password helps protect access, and keypad beeps plus programmable display illumination refine feedback. Extras include an LED flashlight, stopwatch and alarm, a battery-save function, and a high-capacity lithium-ion battery for extended shifts. The Kenwood-style (K1) two-pin accessory port ensures broad compatibility with headsets and speaker mics.
The Baofeng UV-28 comes with a rechargeable Li-Ion battery pack, belt clip, removable antenna, C-ring earpiece with in-line PTT microphone, USB-C charging cable, AC adapter, wrist strap, owner's manual and a one year manufacturer warranty from Baofeng.
The Baofeng UV-28M is a multi-band handheld for licensed amateur operators, combining wide coverage with a clear, menu-driven interface. It transmits on the 144-148 MHz VHF (2 meter), 222-225Mhz (1.25 meter) and 420-450 MHz (70cm) ham bands at up to 10W of power. It can also receive on multiple bands, including FM broadcast 76–108 MHz (RX), AM airband 108–136 MHz, NOAA Weather Radio channels for the U.S. and Canada, 136–174 MHz, VHF2 220–260 MHz, 350–390 MHz and 400–520 MHz. Selectable frequency steps provide precise tuning across bands.
The UV-28M has a bright 1.77" TFT display, full keypad, and open menu system to make programming straightforward, from naming channels to setting repeater offsets. Store up to 999 memories and monitor them efficiently with dual watch and dual reception. The radio offers channel and frequency scanning with multiple modes, while one-touch frequency search and easy pairing/grouping let you clone channel configurations for faster field programming.
The UV-28M offers on-air control and convenience. Choose high or low power, enable VOX for hands-free operation, activate Busy Channel Lockout and use the configurable Time-Out Timer to manage traffic. Ten squelch levels help tame weak-signal noise. DTMF encoding and manual dialing expand control options. An end-of-transmission roger beep is available when needed. A power-on password helps protect access, and keypad beeps plus programmable display illumination refine feedback. Extras include an LED flashlight, stopwatch and alarm, a battery-save function, and a high-capacity lithium-ion battery for extended shifts. The Kenwood-style (K1) two-pin accessory port ensures broad compatibility with headsets and speaker mics.
The Baofeng UV-28 comes with a rechargeable Li-Ion battery pack, belt clip, removable antenna, C-ring earpiece with in-line PTT microphone, USB-C charging cable, AC adapter, wrist strap, owner's manual and a one year manufacturer warranty from Baofeng.
Baofeng UV-28M Features
- Dual Band
- 144-148MHz VHF Frequencies (RX/TX)
- 220-225MHz VHF Frequencies (RX/TX)
- 420-450MHz UHF Frequencies (RX/TX)
- 136-174MHz VHF Frequencies (RX)
- 220-260MHz VHF Frequencies (RX)
- 350-390MHz UHF Frequencies (RX)
- 400-520MHz UHF Frequencies (RX/)
- 108-136MHz AM Airband Frequencies (RX)
- FM radio 76-108 MHz (RX)
- NOAA Weather Reception Function
- 999 Memory Channels
- Repeater Capable
- Up to 10W Transmit Power
- Li-Ion Battery Pack
- Rechargeable Battery Included
- Battery Charger
- 1.77" TFT Large Screen Dual Display
- Alarm Function
- Channel Scan
- Frequency Scan
- Dual Watch
- Dual Reception
- Dual Band
- Busy Channel Lockout
- Adjustable Squelch
- Programmable Repeater Offset
- Call Tone
- CTCSS Manual Input
- Full Backlit DTMF Keypad
- Power-On Display Message
- Power-On Password Management Function
- DTMF Encoder
- DTMF Manual Dial
- Battery Meter
- High/Low Power Selectable
- Low Battery Alert
- Power Saver
- Timeout Timer
- VOX
- Keypad Lock
- Audible Button Beeps
- Voice Prompts
- Full Backlit DTMF Keypad
- USB-C Charging Port
- Drop-In Charge Capable
- Kenwood (K1) Audio Accessory Connector
- PC Programmable (Requires Optional Cable)
- Channel Cloning
- Flashlight
- Stopwatch
- Reset
- One Year Manufacturer Warranty
Included with the Baofeng UV-28M
- Baofeng UV-28M 10W Multi Band Amateur Radio
- 2200mAh Li-Ion Battery Pack
- Removable Antenna
- Belt Clip
- Wrist Strap
- C-Ring Headset
- USB-C Charging Cable
- AC Adapter
- Owners Manual
Baofeng UV-28M Specifications
- Dimensions: 6.2 x 2.6 x 1.7 in. / 157 X 67 X 43mm
- Weight: 12.64 oz. / 360g
- Antenna connector type: SMA Male (Standard)
More Information
| Warranty | 1 Year |
|---|---|
| FCC ID | 2AJGM-UV28PRO |
| Channels | 999 |
| Maximum Output Power | 10 Watts |
| Radio Type | Handheld |
| Services | Amateur |
| Safety Features | Flashlight, NOAA Weather Channels |
| Digital Standard | Analog Only |
| Integration | Repeater Capable |
| Modulation | AM, FM |
| Frequency Bands | 1.25 Meter (220), 2 Meter (VHF), 70 cm (UHF) |
| Battery Chemistry | Lithium |
